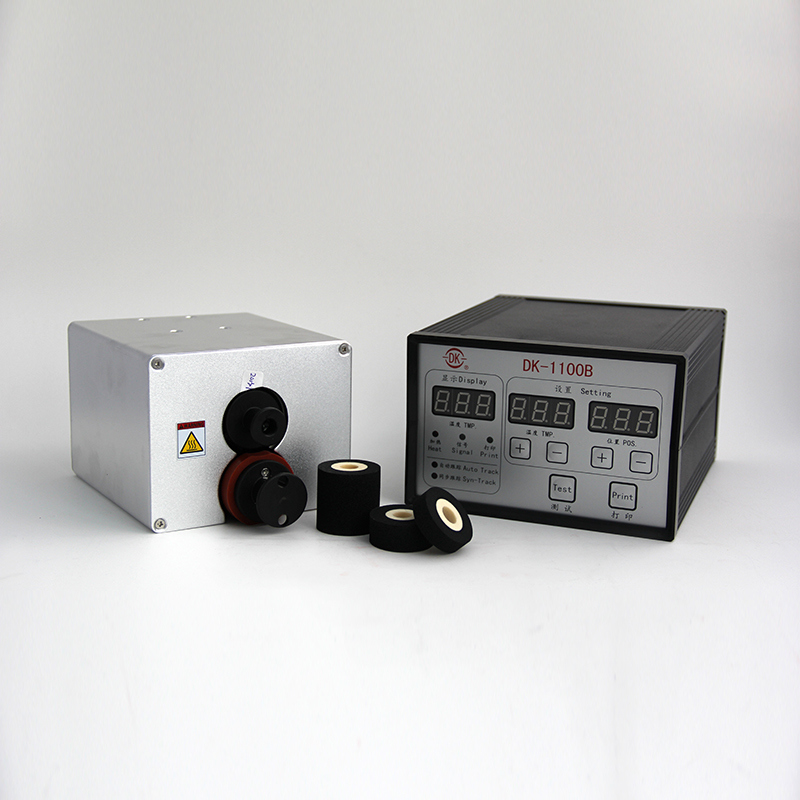

DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer

DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer
DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer
Informations de base
Lieu d'origine: Shanghai, Chine
Nom de marque: Dikai
Certification: CE; ISO 9001
Quantité de commande min: 1
Prix: $500-650
meilleur prix Contactez
Tension: AC100-AC230V, 50/60 Hz Dimensions: 120X100X170mm
Poids: 4 kg Vitesse maximum d'impression: 300 impressions/minute
Région d'impression: 13 lignes, 20 caractères/ligne Poids de la tête imprimé: 2,0 kg
Poids de la boîte de contrôle: 1,0 kg Dimensions de la tête d'impression: 120 mm * 100 mm * 170 mm (L * L * H)
Dimensions de la boîte de commande: 180 mm * 180 mm * 102 mm (L * L * H) Pouvoir: 130W, fusible 2A
Plage de température: 4°c-40°c Vitesse extérieure: 35 mètres/minute
Taille de la police: Type T 1,5 mm, 2,0 mm, 2,5 mm, 3,0 mm*3,5 mm ; Type R 3,5 mm * 3,5 mm, 4,5 mm, 5,5 mm Taille du rouleau d'encre: ¢36*40mm
Zone d'impression axiale: 40mm Zone d'impression radiale: 45.5mm
Mettre en évidence:

Max 300 Prints/Minute Hot Ink Roll Coder

,

AC100-AC230V Expiry Date Printer

,

50/60 Hz Ink Roll Coder

DIKAI DK-1100B Ink Roll Coder Expiry Date Printer
Product Overview
The DIKAI DK-1100B Ink Roll Coder was developed by DIKAI's own R&D team, with cumulative annual sales of approximately 10,000 units globally. Designed for integration with continuous packing machines, it automatically prints production dates, lot numbers, and expiry dates on packing films. Its compact structure, ease of assembly and operation, fast printing speed, and large printing area make it ideal for food, daily chemicals, paper, pharmaceutical, and seed industries. The LED screen extends controller lifespan with minimal maintenance requirements.
Key Features
  • Stable Printing Performance
  • Low Mechanism Consumption
  • Compact Design
  • Simple Installation Process
  • User-Friendly Operation
DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 0 DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 1

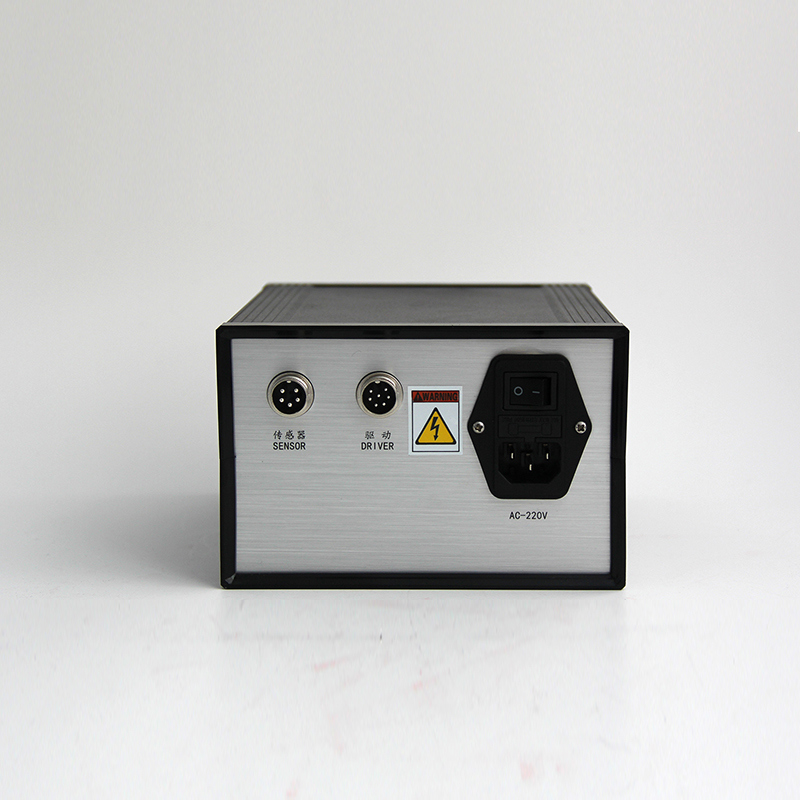

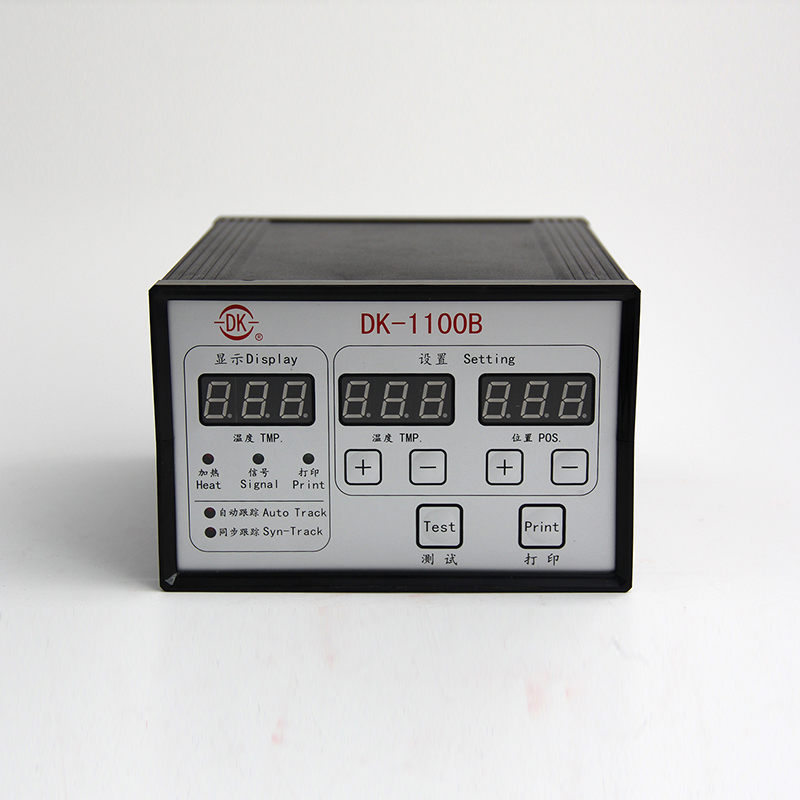

Controller Details
DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 2 DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 3

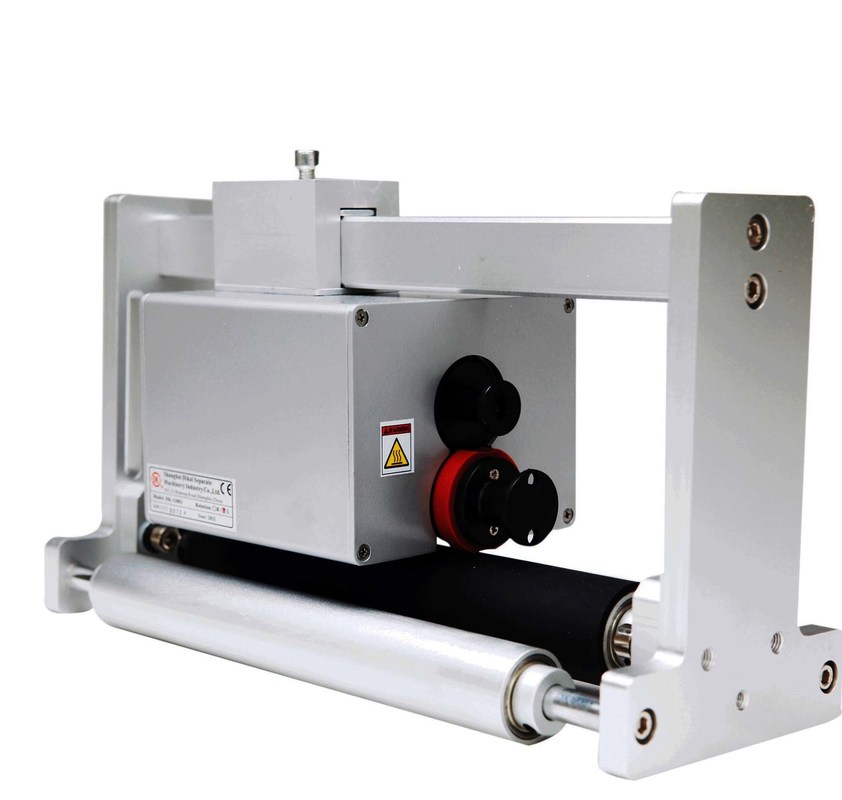

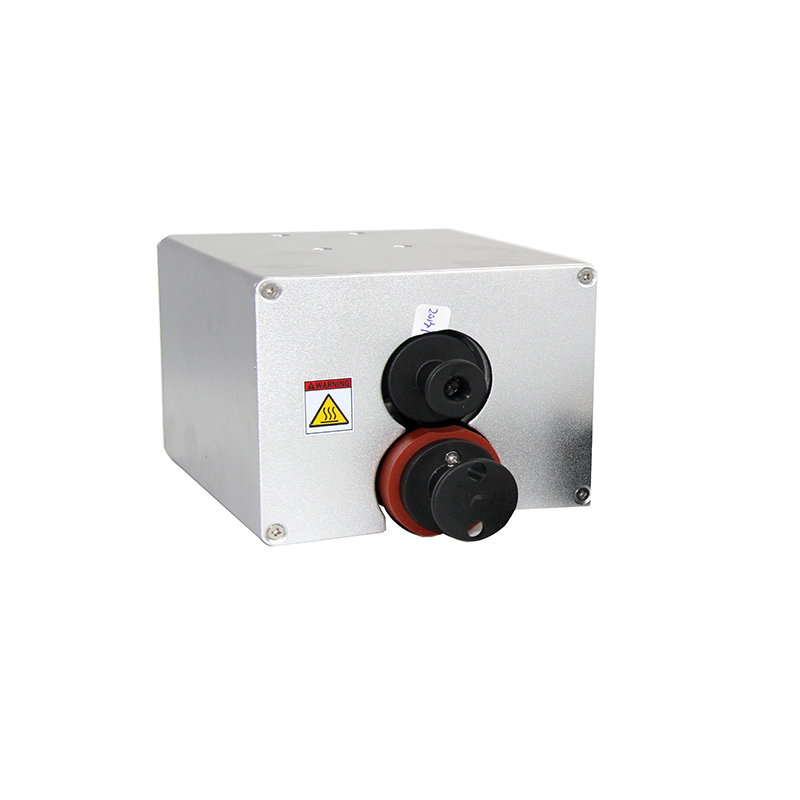

Print Unit
Technical Specifications
Print Area Axial=40mm; Radial=45.5mm
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Capacity T-type (Axial): up to 13 lines, max 20 characters/line
R-type (Radial): up to 10 lines, max 13 characters/line
Font Size T-type: 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm
R-type: 3.5mm*3.5mm, 4.5mm, 5.5mm
Print Speed Up to 300 prints/minute
Surface Speed Up to 35 meters/minute
Weight Print Head: 2.0kg
Control box: 1.0kg
Dimensions Print Head: 120mm*100mm*170mm (L*W*H)
Control Box: 180mm*180mm*102mm (L*W*H)
Type of Print Head Right-hand (Clockwise)
Left-hand (Counter-clockwise)
Control Box LED display
Ink Roll Required ¢36*40mm
Electrical AC100-230V, 50/60Hz
Power 130W, 2A Fuse
Temperature Range 4°C-40°C
Note: The prices shown on Alibaba are not final. Please consult us for customized solutions.
Packaging & Shipping
The carton package is suitable for sea, air, and fast courier shipping.
DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 4 DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 5
After Sales Service
DIKAI DK-1100B Automatic Hot Ink Roll Coder with Max 300 Prints/Minute AC100-AC230V 50/60 Hz Expiry Date Printer 6
Technical Support
  • R&D support
  • Operation Manual Guidance
  • 24-hour professional online support
  • Video support
  • Possible onsite support
Frequently Asked Questions
Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.
What's the regular lead time for Dikai Products?
Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai warehouse.
How about your after-sales service?
In countries with distributors, we rely on them for after-sales services. Dikai also provides online technical support and continuously upgraded video support resources.
