DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty

DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty
DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty
Informations de base
Lieu d'origine: Shanghai, Chine
Nom de marque: DIKAI
Certification: CE; ISO 9001
Quantité de commande min: 1
Prix: US$450-600
meilleur prix Contactez
Tension: AC220+10V,50/60Hz Pouvoir: Fusible 130W, 2A
Vitesse d'impression: maximum 300 ppm, 35 mètres/minute Région d'impression: Type T : ≤ 13 lignes, maximum 20 caractères par ligne ; Type R : ≤ 10 lignes, maximum 13 caractères
Type tailles: Type T : 2,0T, 2,5T, 3,0T, 2,5*7T ; Type R : 3,5R, 4,5R, 5,5R Longueur de poche: ≥38 mm (imprimante 4 poses), ≥75 mm (imprimante 2 poses)
Taille du rouleau d'encre: 36*32mm, 36*35mm, 36*40mm Dimensions: Unité d'imprimante : 120*100*170mm
Poids: Unité d'impression : 2 KG, boîtier de contrôle : 1 KG Fréquence d'impression: ≤300 fois/min
Contenu d'impression: Date MFG/EXP, numéro de lot, numéro de série, etc. Composants de base: Tableau de calcul
Type entraîné: Électrique Niveau automatique: Automatique
Matériau d'emballage: Papier
Mettre en évidence:

13 Lines Print Area Hot Ink Roll Coder

,

AC220V Ink Roll Coder

,

1 Year Warranty Date Coding Machine

DIKAI Dk-1100A High Speed Date Coder Hot Ink Roll Coder
Product Overview

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this reliable model has sold over 100,000 units since its 2011 launch, offering nearly maintenance-free operation for significant cost savings.

Key Features
DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 0
  • Fast Speed - Maximum printing speed of 300 PPM
  • Stable Printing - Consistent high-quality output
  • Less Mechanism Consumption - Reduced maintenance requirements
  • Compact Size - Space-efficient design
  • Simple Installation and Operation - User-friendly setup
Product Images

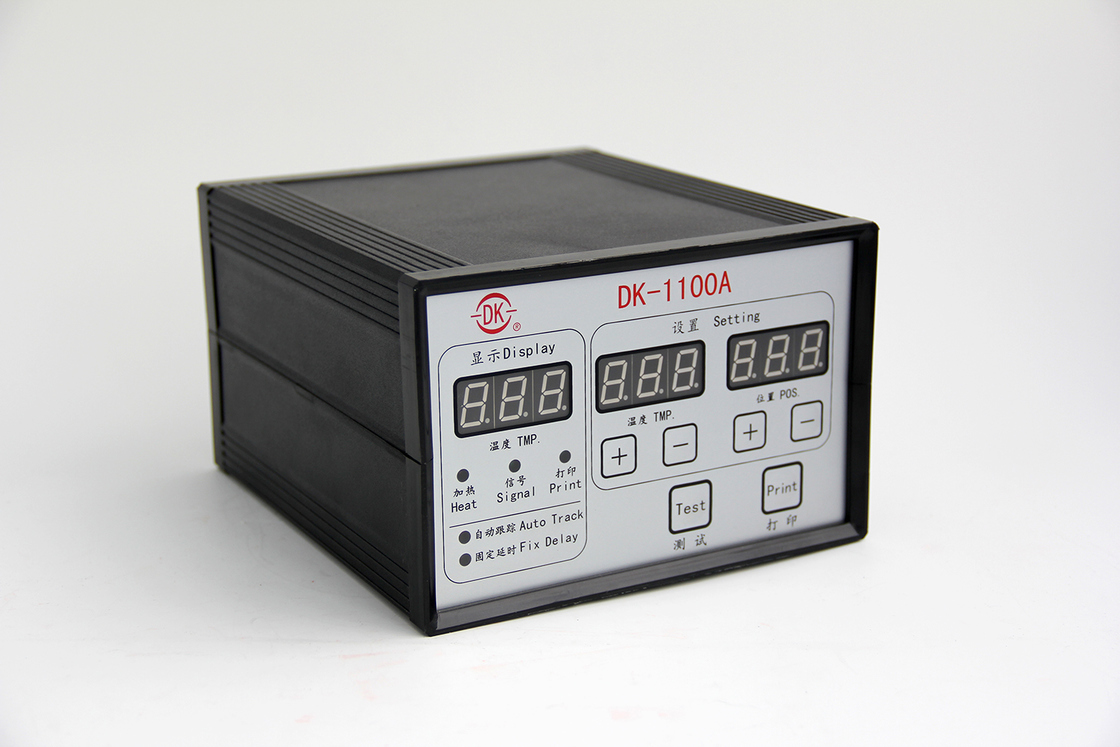

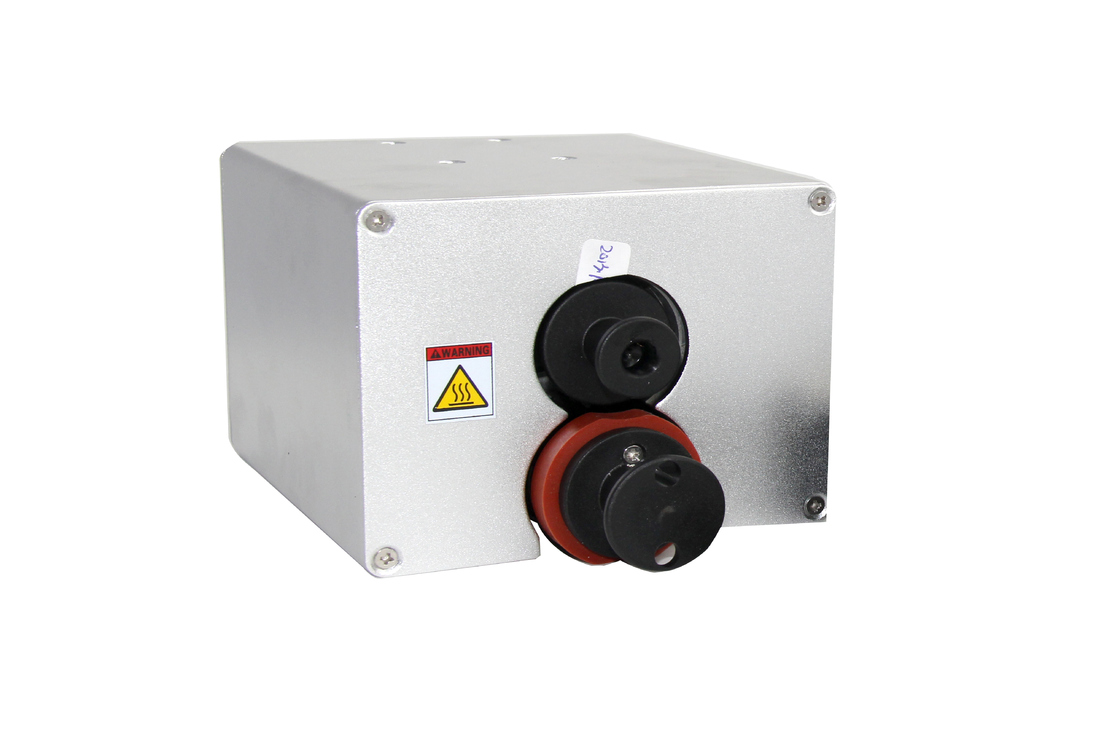

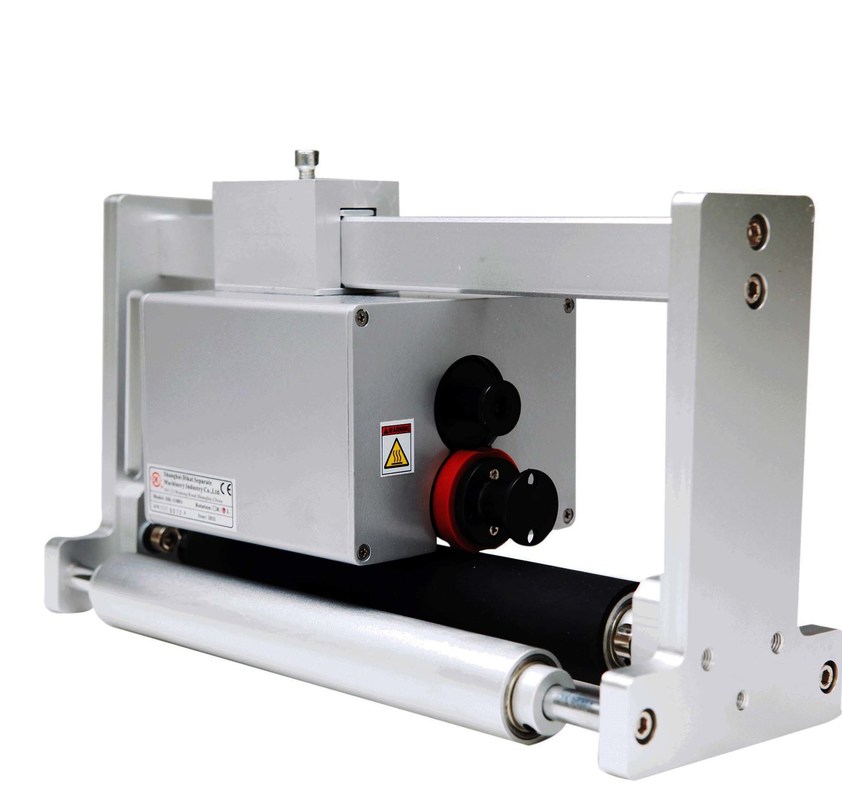

DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 1 DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 2 DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 3
Technical Specifications
Product Name DK-1100A Ink Roll Coder
Print Area T-Type (Axial): ≤13 lines, max 20 characters per line
R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T
R-Type: 3.5R, 4.5R, 5.5R
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Frequency ≤300 times/min

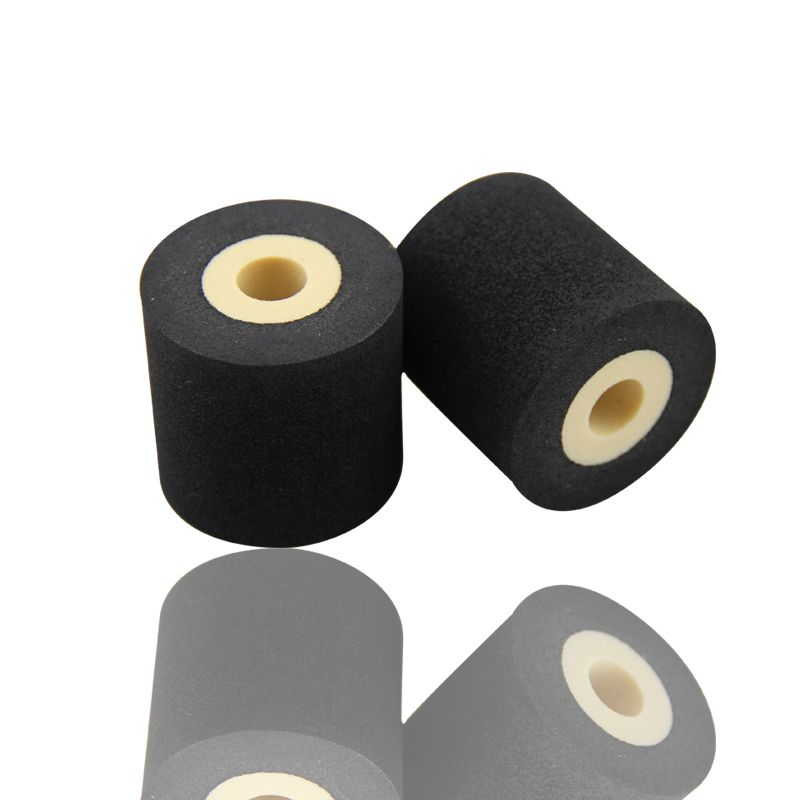

Ink Roll Required 36*32mm, 36*35mm, 36*40mm
Electricity AC220+10V, 50/60Hz
Power 130W, 2A fuse
Print Speed Max 300PPM, 35 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.
Note: The prices shown on Alibaba are not final prices. Please consult us for customized solutions.
Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 4 DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 5
After Sales Service
DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty 6
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
Frequently Asked Questions
1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

In countries with distributors, we rely on our local partners for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
