DIKAI D03S Thermal Transfer Overprinter with 32x60mm/32x100mm Print Area AC100-240V 50/60Hz and USB/RS232/Network Interface

Informations de base

Lieu d'origine:	Shanghai, Chine
Nom de marque:	Dikai

Quantité de commande min:	1
Prix:	$2,700-3,000

meilleur prix Contactez

Chef d'impression:	32 mm, kyocera; 300 dpi	Région d'impression:	Intermittent: 32 mm * 60 mm, continu: 32 mm * 100 mm
Taille de ruban:	33 mm * 500m	Fréquence d'impression:	Intermittent: jusqu'à 350 ppm, continu: jusqu'à 40 mètres / minute
Alimentation électrique:	AC110 ~ 220V, 50 / 60Hz, 150W	Température de fonctionnement:	0-40 ℃
Humidité relative:	10% ~ 95% (non condensé)	Alimentation aérienne:	6bar / 90psi (max) sec non contaminé
Poids:	Tête d'impression: 8,5 kg, boîte de commande: 2,0 kg	Dimension:	Unité d'impression: 188 mm * 190 mm * 180 mm, Boîte de contrôleur: 210 mm * 180 mm * 155 mm
Mode d'impression:	Intermittent / continu	Longueur du ruban maximum:	500m
Largeur du ruban:	22 mm ~ 33 mm	Interface:	USB, RS232, interface réseau
Résolution d'impression:	300 dpi
Mettre en évidence:	32x60mm/32x100mm Print Area Thermal Transfer Overprinter , AC100-240V 50/60Hz TTO Printer , USB/RS232/Network Interface Date Coder Printer

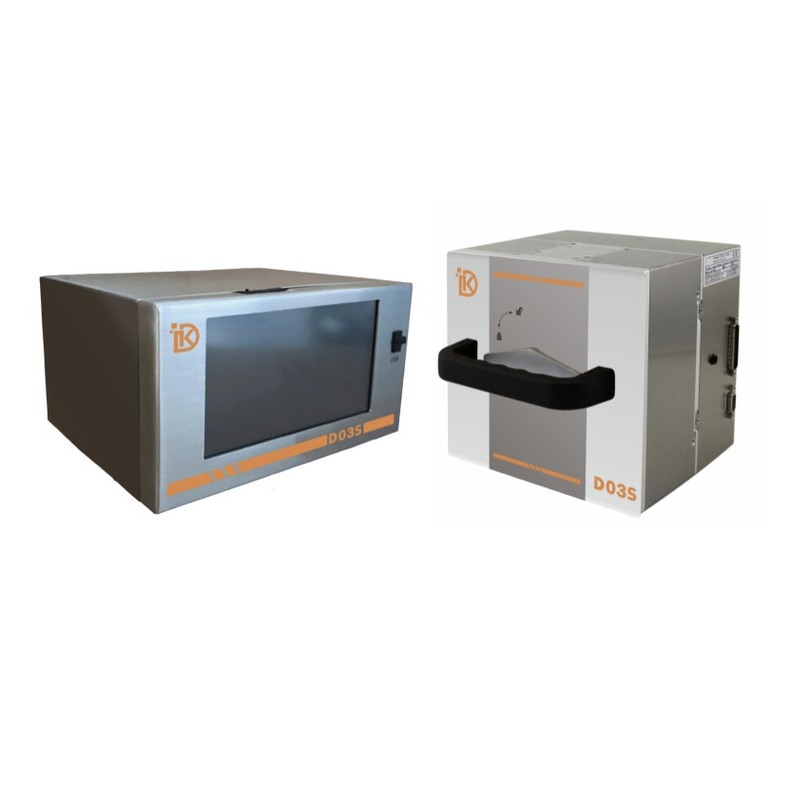

DIKAI D03S Smart TTO Thermal Transfer Overprinter

Professional Label and Film Date Coding Solution

Product Overview

The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packaging machines.

Key Features

Continuous & Intermittent printing modes
32mm Kyocera Printhead with 300 DPI resolution
Prints real-time dates, variable data, barcodes, QR codes, graphics, and logos
User-friendly interface for easy operation
Cost-effective industrial printing solution

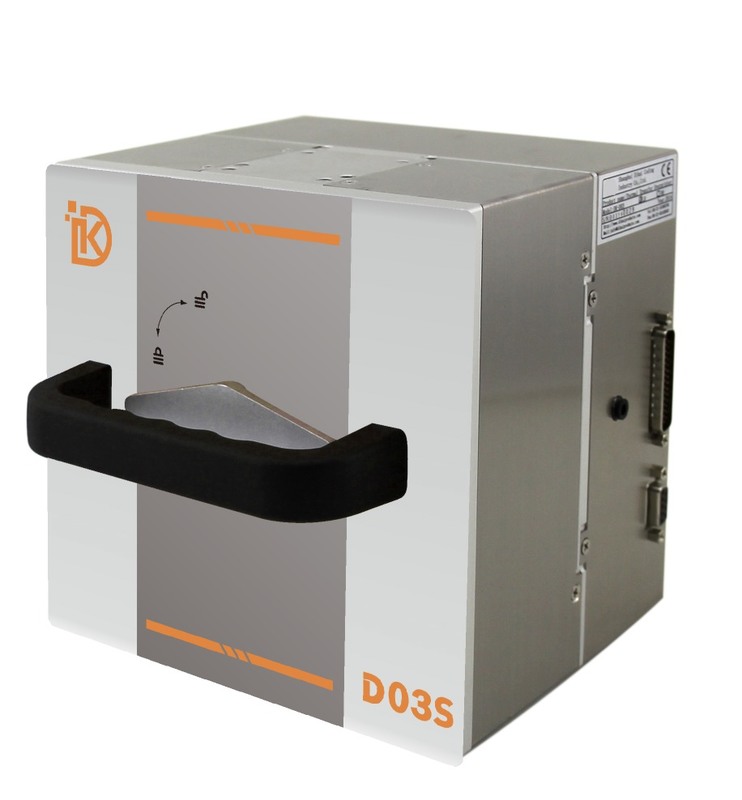

32mm Printhead Detail

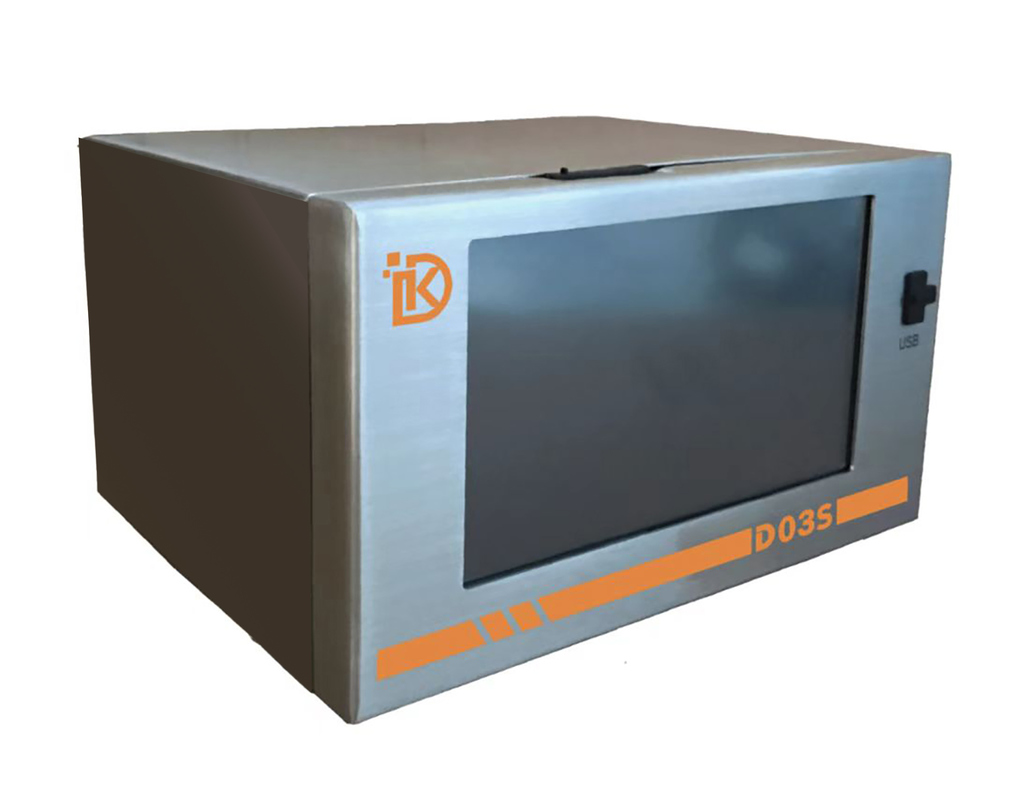

User Interface

Technical Specifications

Print Head	32mm, Kyocera; 300DPI
Print Area	Intermittent: 32mm×60mm Continuous: 32mm×100mm
Ribbon Size	33mm×500m
Print Frequency	Intermittent: up to 350PPM Continuous: up to 40 meters/minute
Power	AC110~220V, 50/60Hz, 150W
Operation Temperature	0-40℃
Humidity	10%~95% (non-condensing)
Air Supply	6bar/90PSI (MAX) dry uncontaminated
Weight	Print head: 8.5kg, Control box: 2.0kg
Dimensions	Print Unit: 188×190×180mm Controller box: 210×180×155mm
